Replacement Surge Modules

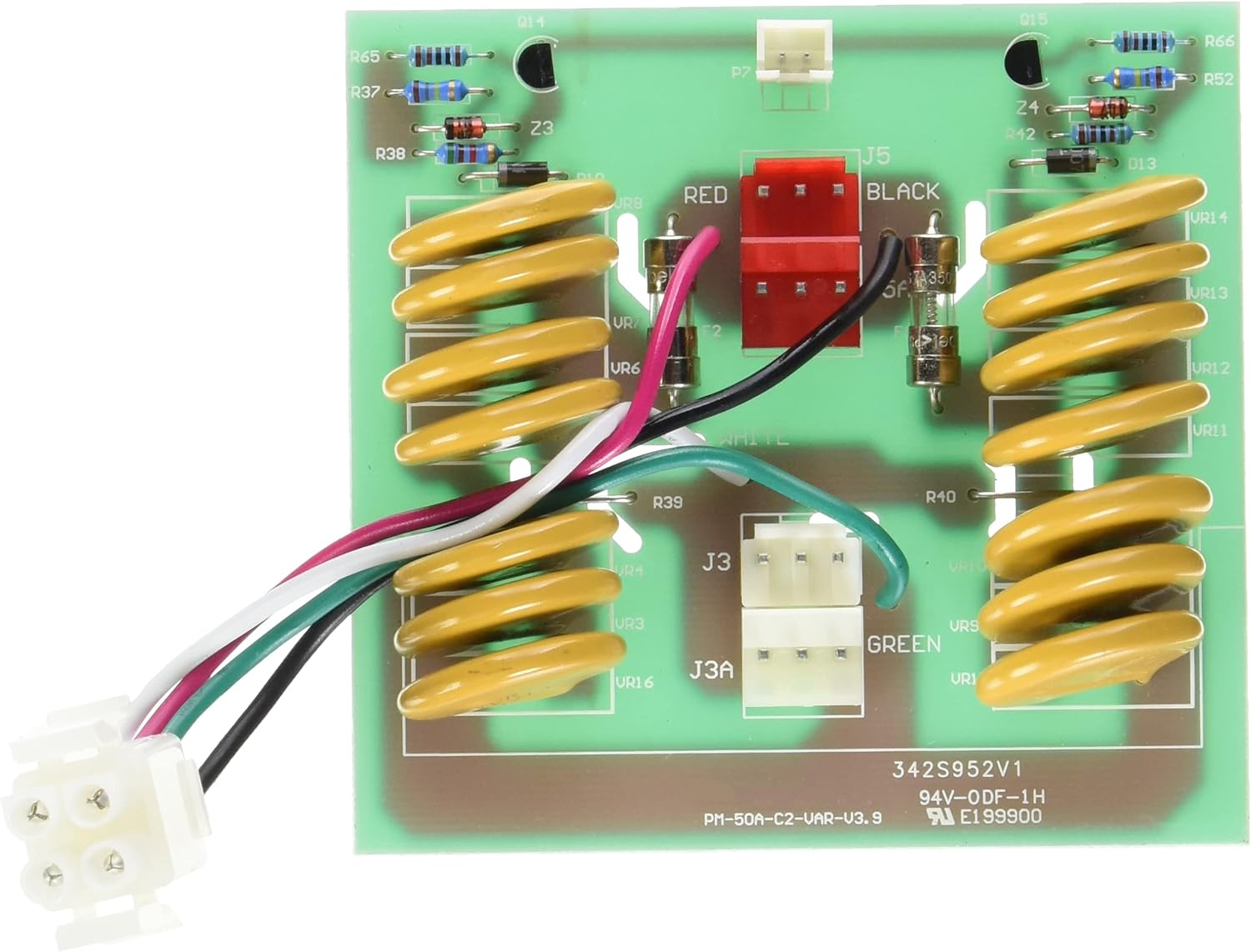

3,000 Joules Surge Protection Module

This replacement surge protection module is only for the PWD30-EPO and PWD30-EPO-H units. It is designed for use only with the auto shutoff versions.

6,100 Joules Surge Protection Module

This replacement surge protection module is only for the PWD50-EPO and PWD50-EPO-H units. It is designed for use only with the auto shutoff versions.

Simple installation! The only tool required is a Phillips screw driver.

INSTRUCTIONS

• UNPLUG THE UNIT – make sure unit is fully disconnected from power prior to installation.
• Unscrew 8 Phillips screws on the back of the unit.
• Unscrew the top and bottom cable gland nuts.
• Unscrew the screws holding the old surge module.
• Unplug the old surge module from the unit.
• Connect the new surge protection module.
• Replace all the screws and re-tighten the cable gland nuts.

CAUTION!

Make sure unit is unplugged before installation!
